For the rendering of the model, we choose to recreate the most memorable scene of Vanilla Sky in the streets of a empty Times Square, New York City.
We chose two different configurations for our model: a stock and movie-based. With the built-in configuration feature in SolidWorks, the user can easily switch between each style accordingly.
A CFD analysis was completed using SolidWorks Flow Simulation.

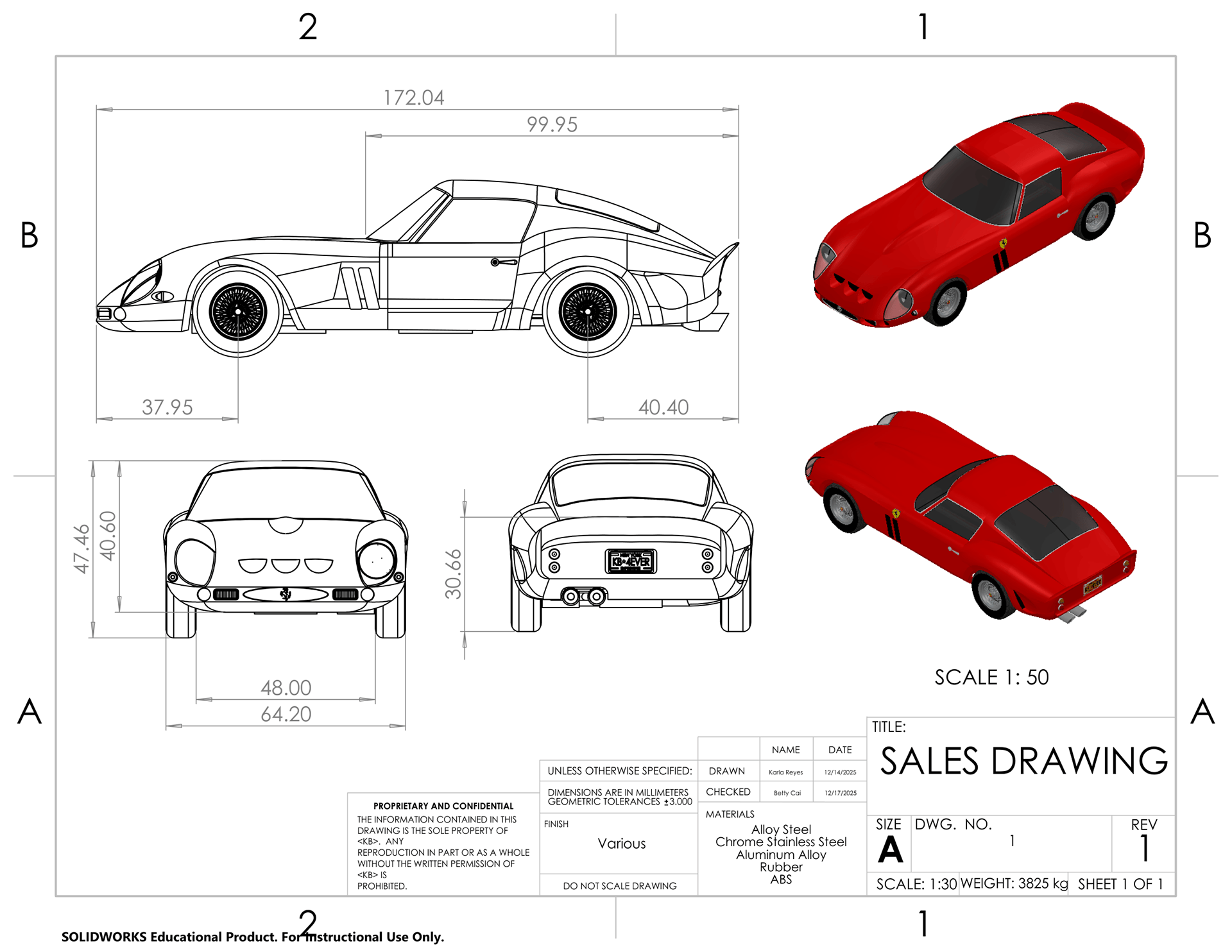

Detailed, subassembly, assembly drawings were created following industry standards. The assembly and sales drawings are as shown above.

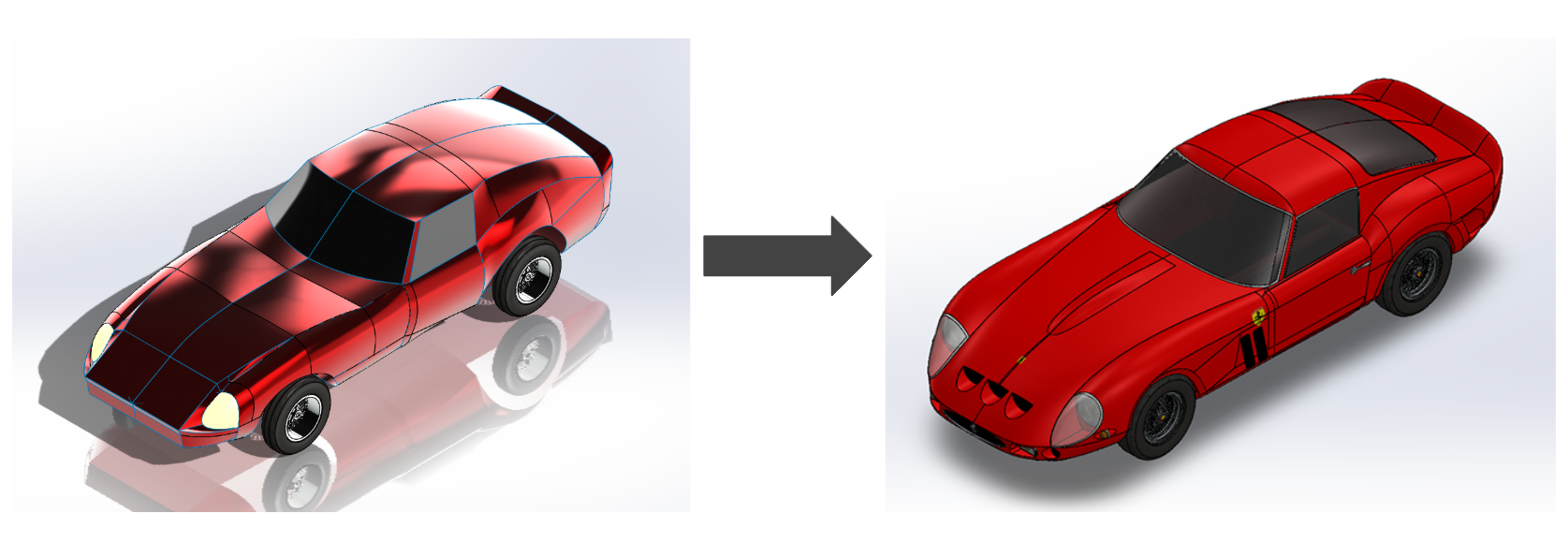

The image on the left shows a early model of the Ferrari. After months of learning surface features, the right photo and model was achieved. I learned the importance of communication and consistency when 3D modeling in a team as changing a single file name could mean hours of frustration.
